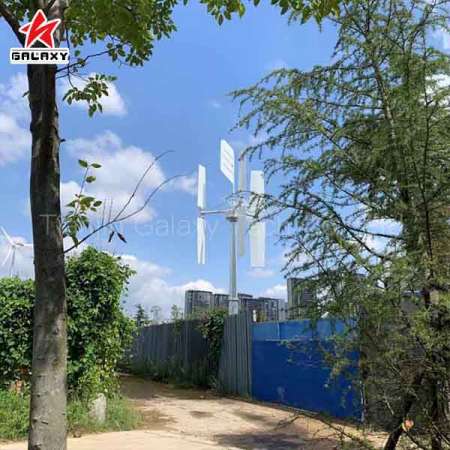

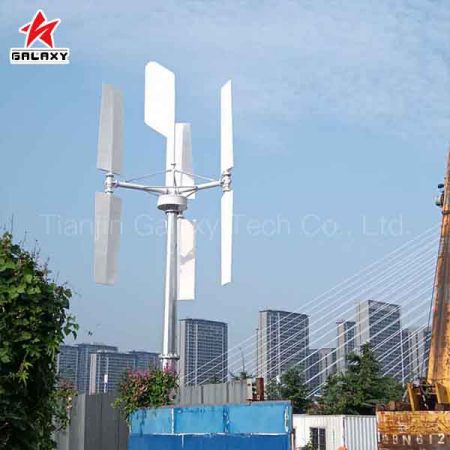

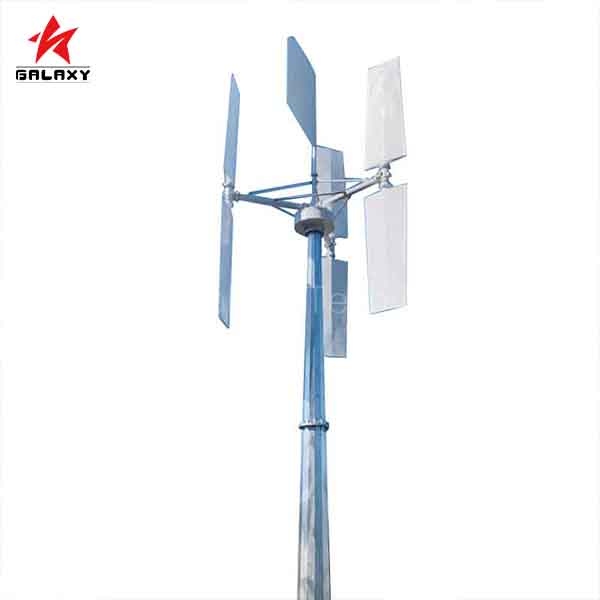

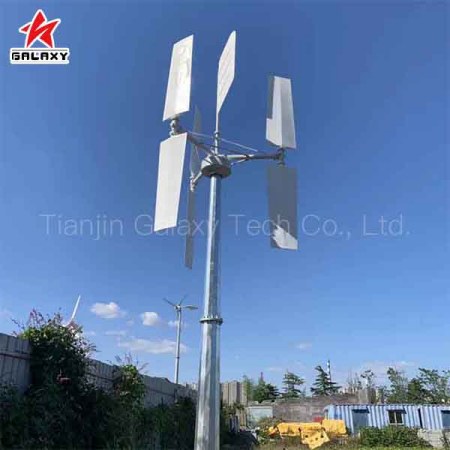

40rpm 5KW Vertical Axis Wind Turbine
Advantages of vertical axis H-wind turbines：
1. High wind energy utilization efficiency: the wind energy utilization efficiency of vertical axis H-type wind turbine is relatively high, usually above 70%.
2. Flexible number of blades: Compared with the horizontal axis wind turbine, the number of blades of vertical axis H-type wind turbine is more flexible and can be designed according to the specific needs.
3. Convenient maintenance: due to the smaller number of blades, the maintenance of vertical axis H-type wind turbine is relatively convenient, and it is possible to adopt the way of replacing the blades as a whole or partially.
4. Low noise: compared with other types of wind turbines, vertical axis H-type wind turbines are less noisy and have less impact on the surrounding environment.
Product Overview & Engineering Excellence
Welcome to the next generation of renewable energy technology. Engineered for peak performance, durability, and commercial reliability, our 40RPM 5KWH High-Efficiency vertical axis wind turbine redefines clean energy generation. Unlike traditional horizontal systems, this advanced vertical wind turbine captures wind flows from any 360-degree direction without requiring a yaw mechanism. This unique omni-directional design makes it exceptionally suitable for complex wind environments, urban settings, coastal regions, and remote off-grid installations where wind direction changes frequently and unpredictably.
Unmatched Performance & Low-Speed Generation

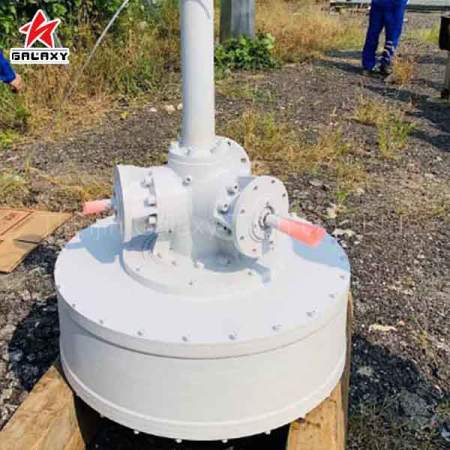

Operating at an ultra-low starting wind speed and an optimized rated speed of just 40RPM, this state-of-the-art vertical windmill generator maximizes energy harvest even in low-wind conditions. The heavy-duty 5KWH capacity ensures a steady, reliable power output for residential complexes, agricultural farms, telecommunication stations, and commercial microgrids. By integrating advanced aerodynamic blade profiles and high-grade permanent magnet synchronous generators (PMSG), mechanical friction is minimized, electrical conversion efficiency is maximized, and overall system longevity is significantly extended beyond industry standards.
Product Parameters
|
JX-H 5KW vertical axis wind turbine technical parameters |
|
|
5000 |
|
|
Maximum power (W) |
7200 |
|
Diameter of wind wheel (m) |
3.6 |
|
Number of blades (blade rotation assembly) |
3 sets |
|
Blade length (m) (blade rotation assembly) |
2.4 meters, total height of 2 blades plus self-propelled assembly 5.4 meters |
|
Blade width (m) |
800mm |
|
Blade form |
resistance type |
|
Wind Turbine Operation Mode |
rotational mode of rotation (e.g. of solar system) |
|
Rated Speed (r/min) |
40 |
|
Rated Wind Speed (m/s) |
12 |
|
3 |
|
|
Working Wind Speed(m/s) |
3-25 |
|
Safe Wind Speed(m/s) |
40 |
|
Output Voltage(DC/V) |
216V (output voltage can be customized upon request) |
|
Tower height (m) |
10 |
|
Top mass (kg) |
900 |
|
output control |
Control Inverter |
|
Insulation class |
B |
|
Blade Material |
Carbon steel |
|
Overs-peed Protection |
Electromagnetic protection |
Versatile Applications: Commercial & Residential Integration
Whether you are seeking a sustainable power upgrade as a vertical wind turbine for home applications or deploying a scalable green energy array for industrial and commercial B2B projects, this turbine delivers unmatched versatility. Its compact footprint, quiet operation, and sleek modern aesthetic allow for seamless installation on rooftops, open plots, communication towers, and hybrid solar-wind systems. B2B distributors, renewable energy EPC contractors, and global project developers will find this unit to be an exceptionally profitable, low-maintenance asset that guarantees long-term return on investment (ROI).
Key Technical Highlights & Wholesale Advantage
Omni-Directional Capture: Captures airflow from all directions instantly without mechanical yaw failure risks.
Low Noise & Vibration: Engineered structural balancing ensures whisper-quiet operation suitable for residential zones.
High Conversion Efficiency: Proprietary magnetic generator design yields superior power output curves at lower RPMs.
Global B2B Support: Comprehensive OEM/ODM customization, competitive tier pricing, and certified quality assurance for international distributors.
Partner with us today to accelerate your green energy portfolio. Contact our engineering sales team for bulk quotations, custom technical specifications, and distribution partnership opportunities.
