380V 20kW Wind Turbine On-grid Controller&Inverter All in One Machine
Wind Controller&Inverter integrated machine
MPPT included,and 30 points settable
Speed VS Power output setting
Automatic&manual over speed protection
RS485 monitoring mode optional
Remote control of "brake"&"run"functions
Easy installation
Product Description
Wind Controller&Inverter integrated machine
MPPT included,and 30 points settable
Speed VS Power output setting
Automatic&manual over speed protection
RS485 monitoring mode optional
Remote control of "brake"&"run"functions
Easy installation
Wind power on-grid controller&inverter integrated machine with MPPT function. It looks concise and can be easily operated.
Applications

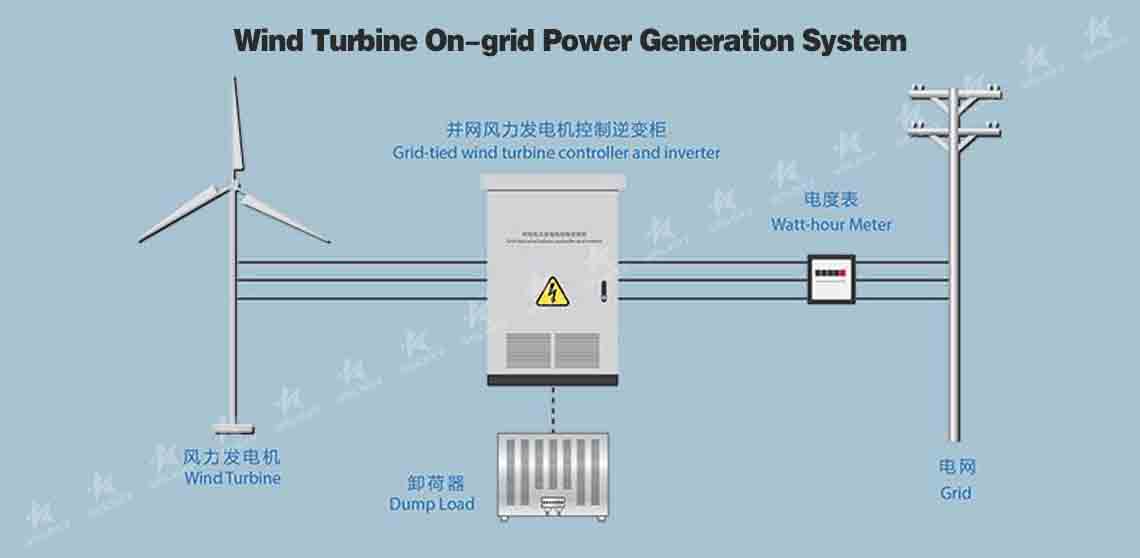

Distributed wind power grid-tied system
Solar&wind hybrid power grid-tied system
Wind power grid-tied system
Features
Wind Controller&Inverter integrated machine
MPPT included, and 30 points settable
Complete protection functions
RS485 monitoring mode optional
Product Parameters
|
Model Specifications |
20KW Three-phase |
|
|
Enter |
Input Voltage Range |
AC 150~380V |
|
Rated voltage |
DC 240V-345V
|
|
|
Input Wind Turbine |
1 fan can be input |
|
|
Input Photovoltaic |
One way PV (<3KW) |
|
|
Output |
Rated Power |
20KW |
|
Rated voltage |
380VAC |
|
|
Frequency |
Grid frequency 50/60Hz |
|
|
Phase |
Three Phase |
|
|
Power Factor |
Max. 0.99 |
|
|
Maximum Current |
63A |
|
|
Maximum current distortion THD |
At rated power and sine wave<3.5% |
|
|
Efficiency |
＞93%
|
|
|
Structure |
Enclosure Protection Class |
IP57 |
|
Cooling method |
Intelligent forced air cooling |
|
|
Audible noise |
<50dB |
|
|
Data interface |
RS 485 |
|
|
Display |
LCD |
|
|
Topology |
With transformer |
|
|
Protect |
Inverter |
Input over voltage, output short circuit protection, overload, overheat protection |
|
Controller |
Grid outage protection |
|
|
Power grid |
Anti-islanding effect (IEEE 1547), grid under voltage and over voltage protection, Grid low frequency and high frequency protection |
|
|
Environment |
Working temperature |
Air circulation, -25°C~60°C |
|
Storage ambient temperature |
-25℃~60℃ |
|
|
Relative humidity |
0~100% |
|
|
Environment |
No flammable gas, corrosive gas, oil fume, dust, etc. around |
|
|
Standby power consumption |
<250mW |
|
|
Altitude |
6600 feet (2000 meters) |
|
