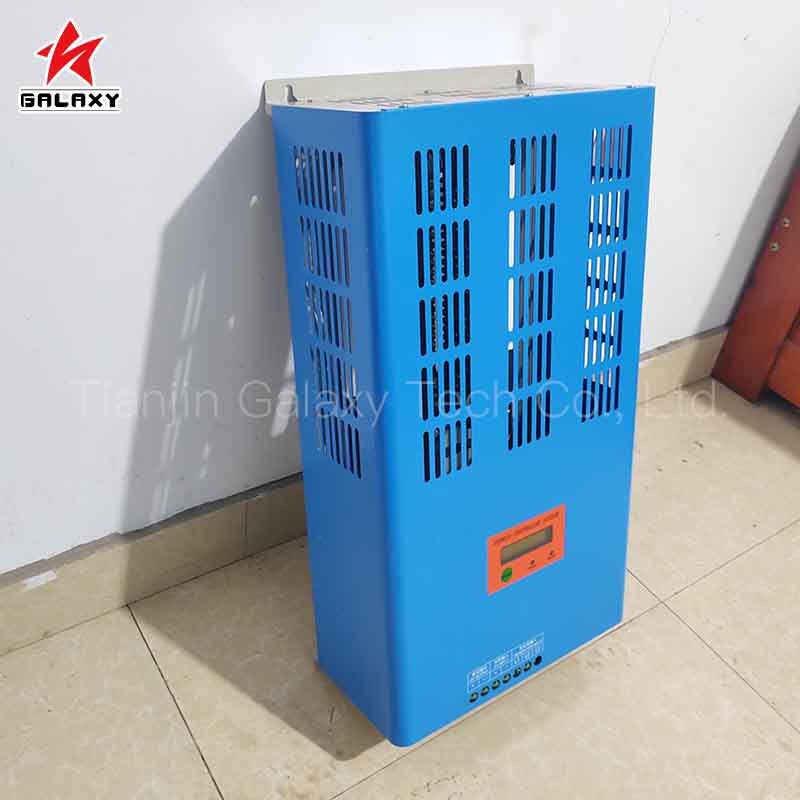

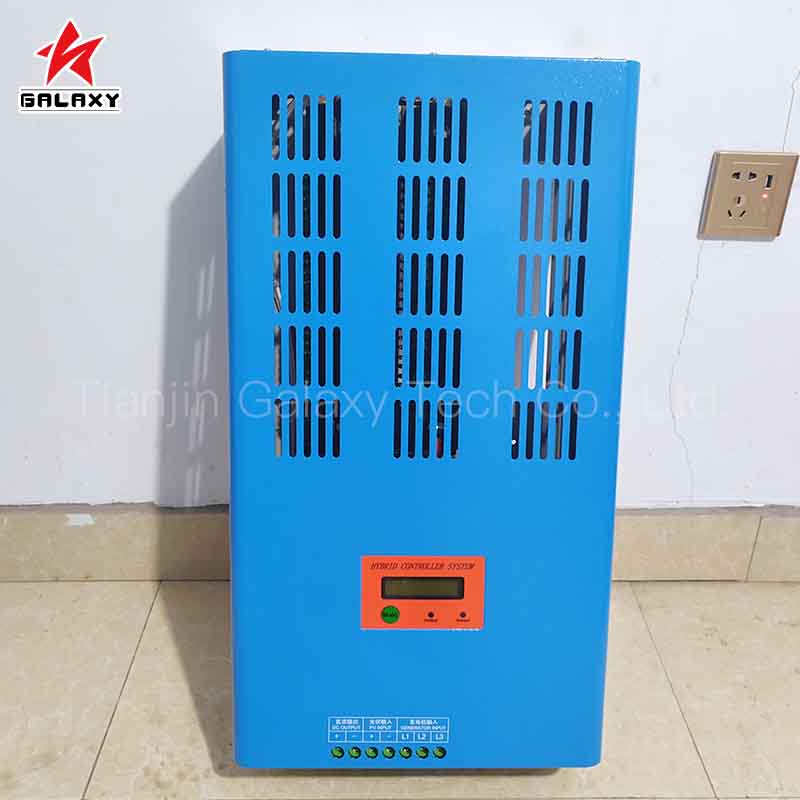

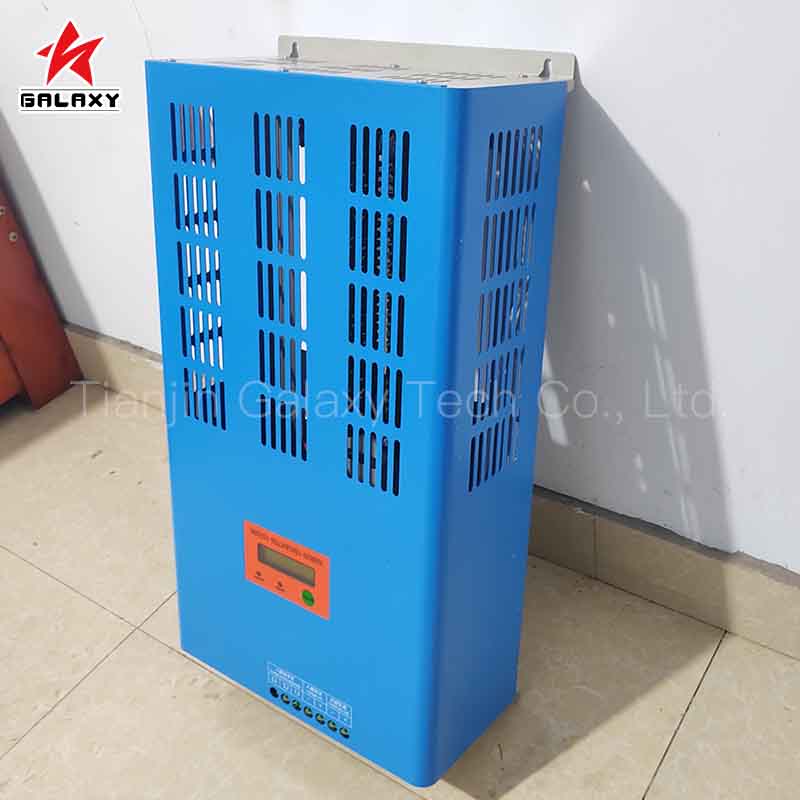

2kW Wind Turbine PWM Controller Off-grid System for Home Use
》Can be applied to grid-tied system,off-grid system and grid-tied energy storage system.
》Several function share optional,such as PV control function,wind speed measure function,rotational speed control function and temperature compensation function.
》RS232/RS485/RJ45/GPRS/Bluetooth/Zigbee optional. (It can be monitored by app for those with GPRS/Bluetooth/RJ45 connection)
》MPPT power curve settable
》Complete protection function
》Standard MODBUS protocol optional
Product Description
Wind MPPT Off-grid Controller
Low Voltage Charge
30Points MPPT wind turbine power curve settable
Complete protection function(settable)
Standard with RS485 (RS232//RJ45/GPRS/Bluetooth/Zigbee optional.)
Standard MODBUS protocol optional
Optional functions: wind speed measure, rotational speed control function and temperature compensa-tion function
Optional functions: Remote monitoring APP & PC and control Brake &Run
Applications
Independent wind power plant
Independent house hold wind power generation system
Power supply for those unmanned regions like mobile communication station,highway,the coastal islands,remote mountainous regions and border posts.
Regional research projects,government demonstration projects,landscape lighting projects for those places with insufficient power or power shortages.
Product Parameters
|
Model |
JXKZ-2KW |
|
Fan Rated Power |
2KW |
|
Maximum Fan Power |
3KW |
|
System Rated Voltage |
DC24V-360V Optional |
|
Over Voltage Protection Voltage |
Set the over voltage protection value according to the system voltage |
|
Float Charge Voltage |
Set the over voltage protection value according to the system voltage |
|
Load Loss |
≤3mA |
|
Ambient Temperature |
－20～＋55℃ |
|
Working Noise |
<25dBA |
|
Use Altitude |
≤5500 M |
|
Cooling Method |
Forced cooling |
|
Communication |
Rs485 |
|
Show |
LCD |
|
Net Weight |
10kg |
|
Dimensions mm |
440*420*180 |
