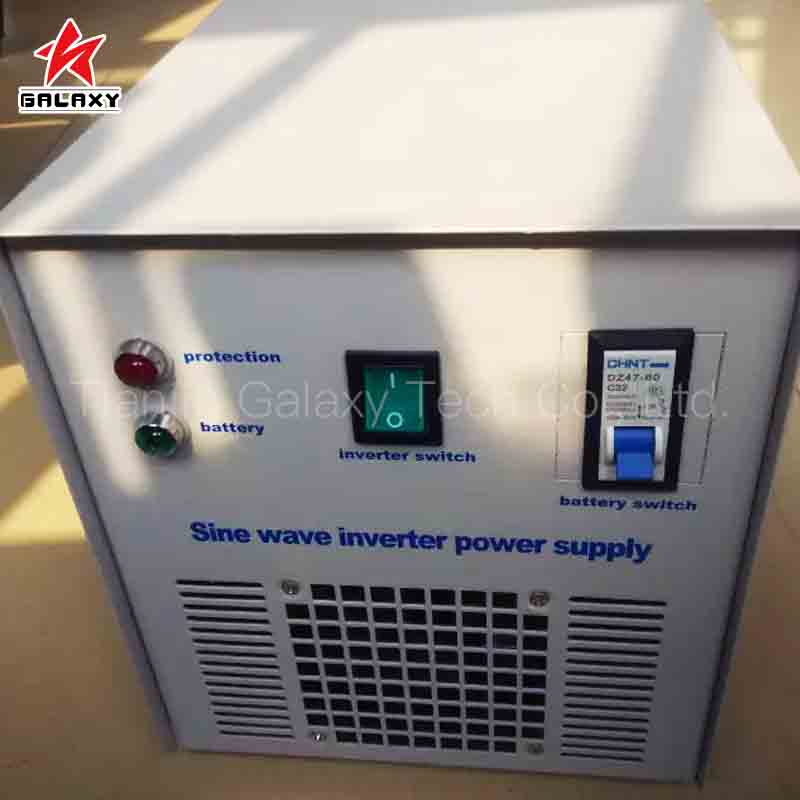

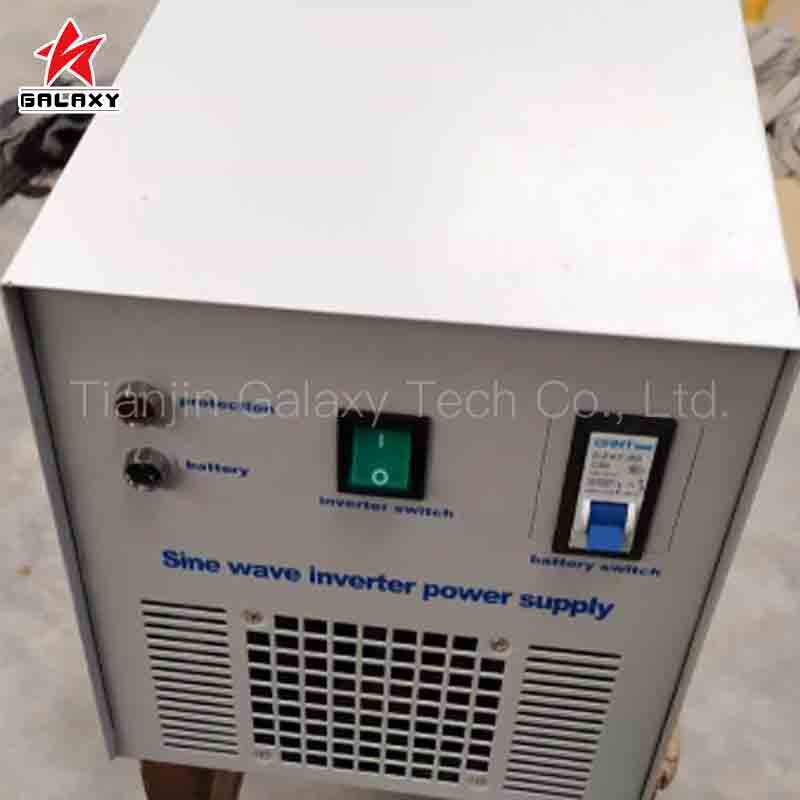

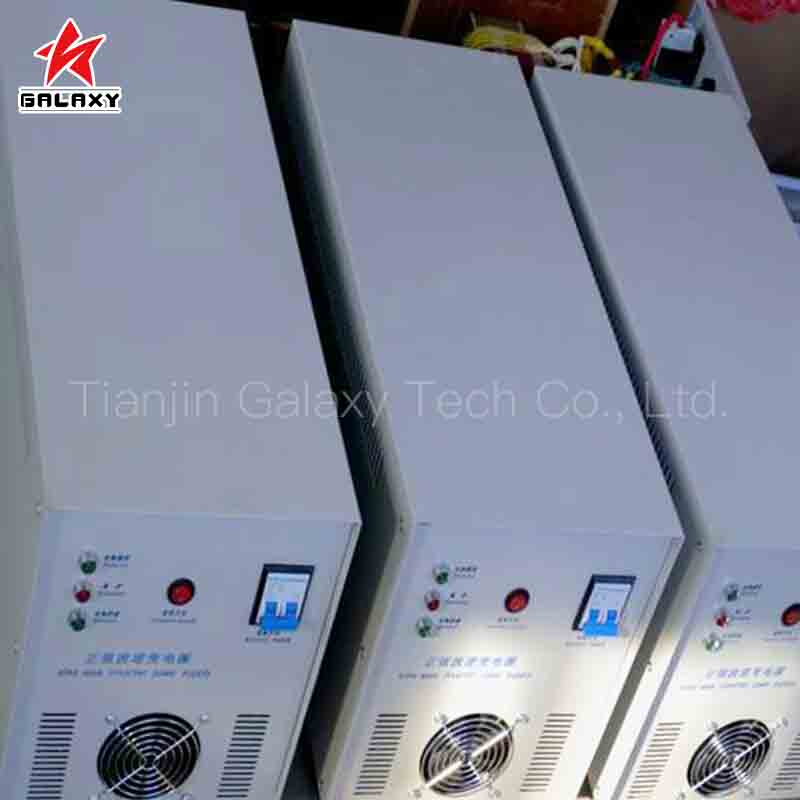

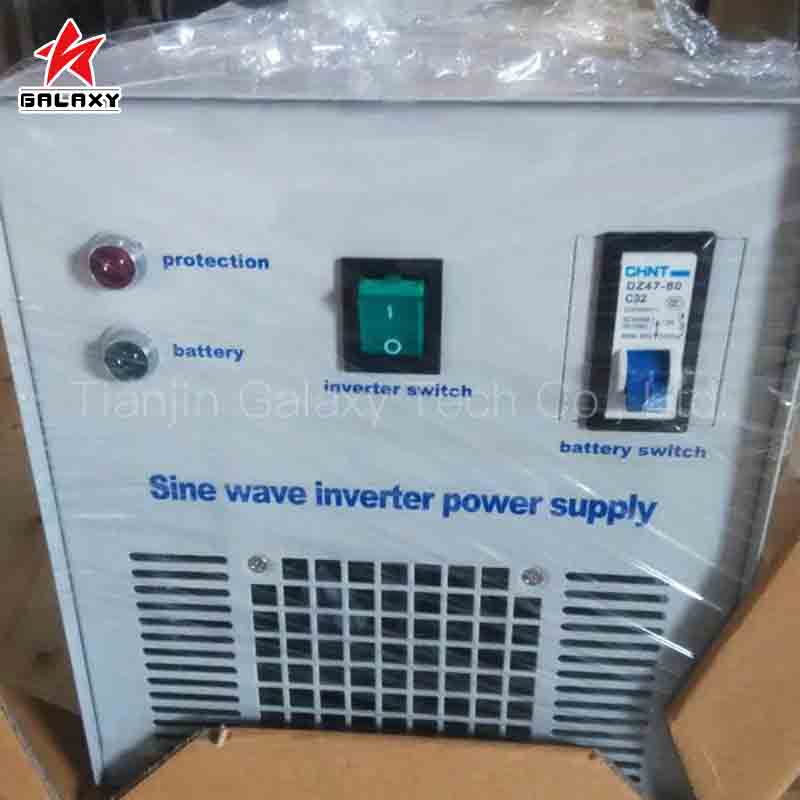

1kW 220V Wind Turbine Inverter for Wind Turbine Off-grid System
1. Pure sine wave output, can take any household load.
2. Use integrated circuit to reduce line connection.
3. Adopt microprocessing technology to improve system integration.
4. Perfect protection function, including overvoltage, undervoltage, overload, overheating, short circuit.
Product Description

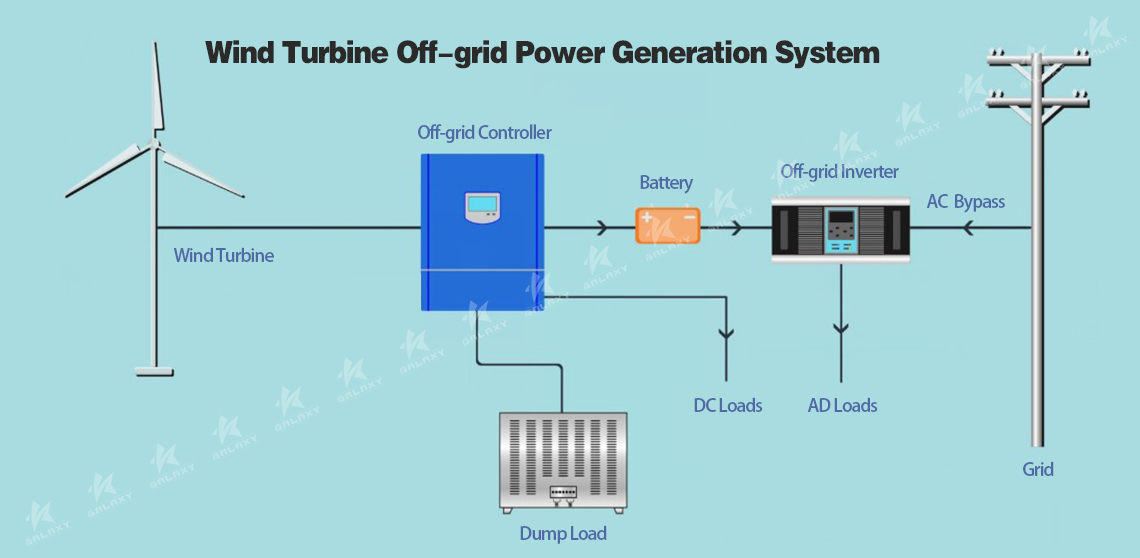

Inverter is technologically the most important component in wind generator systems. It is suitable for both permanent magnet synchronize generator and asynchronize generator .It convert unstable AC current from wind turbine into DC, then convert to stable AC ,to achieve the wind turbine frequency and voltage stable control at different speed. no impact on grid, superior fault ride-through capability and excellent grid adaptability.
Leading Features
1. MPPT (Power Curve Tracking) Technology
2. Over 97.5% Max. Efficiency
3. Super high frequency switching technology
4. Integrated Export Power Manager (EPM)
5. Compact and lightweight
6. Wide voltage range and low startup voltage
The role of the inverter:
1. Pure sine wave output, can take any household load.
2. Use integrated circuit to reduce line connection.
3. Adopt microprocessing technology to improve system integration.
4. Perfect protection function, including overvoltage, undervoltage, overload, overheating, short circuit.
5. It can be used in wind power generation or solar PV complementary power generation system.
6. Use high-efficiency transformer instead.
7. Automatic voltage regulation.
8.LCD displays parameters.
9. The system runs with high stability and reliability.
10. High efficiency transformer isolation.
11. When overvoltage, overload, overheating, buzzer alarm.
Product Parameters
|
Model |
JXNB-1KW |
|
Input Battery Voltage DC/V |
12-240 Optional |
|
Working Voltage Range DC/V |
Set the over voltage protection value according to the system voltage |
|
Output Voltage AC/V |
220/110 |
|
Output Power W |
1KW |
|
No-load Loss W |
20 |
|
Output Frequency HZ |
50/60 |
|
Waveform |
Pure sine wave |
|
Inversion Efficiency% |
90 |
|
Allow Overload% |
120 |
|
Under Voltage Reminder DC/V |
Set the range value according to the input rated voltage |
|
Under Voltage Protection DC/V |
Set the range value according to the input rated voltage |
|
Overload Reminder |
110% (30 seconds shutdown) |
|
Overload Protection |
150% (3 seconds off) |
|
Output Protection |
Overload, short circuit, equipment overheating protection |
|
Dielectric Strength |
1500VAC, 1 minute (input, output) |
|
Ambient Temperature |
－20～＋55℃ |
|
Use Altitude |
≤5500 M |
|
Cooling Method |
Forced cooling |
|
Display Method |
LCD screen |
|
Display Content |
Frequency, battery power, voltage, temperature |
|
Net Weight kg |
16 |
|
Size |
440mm*235mm*240mm |
|
Remarks: Under voltage reminder DC/V, under voltage protection DC/V For example: the system DC input is 48V, under voltage reminder: 44V under voltage protection: 42V |
|
